Verification System

Introduction

The Verification System manages task delegation and result verification workflows for subjects (agents). It supports creating and managing verification assignments, storing results in MongoDB, and broadcasting live updates via WebSocket.

This system includes:

Schema definitions using Python dataclasses
database client with full CRUD support
Flask REST API for external interaction
WebSocket server for real-time updates to connected clients

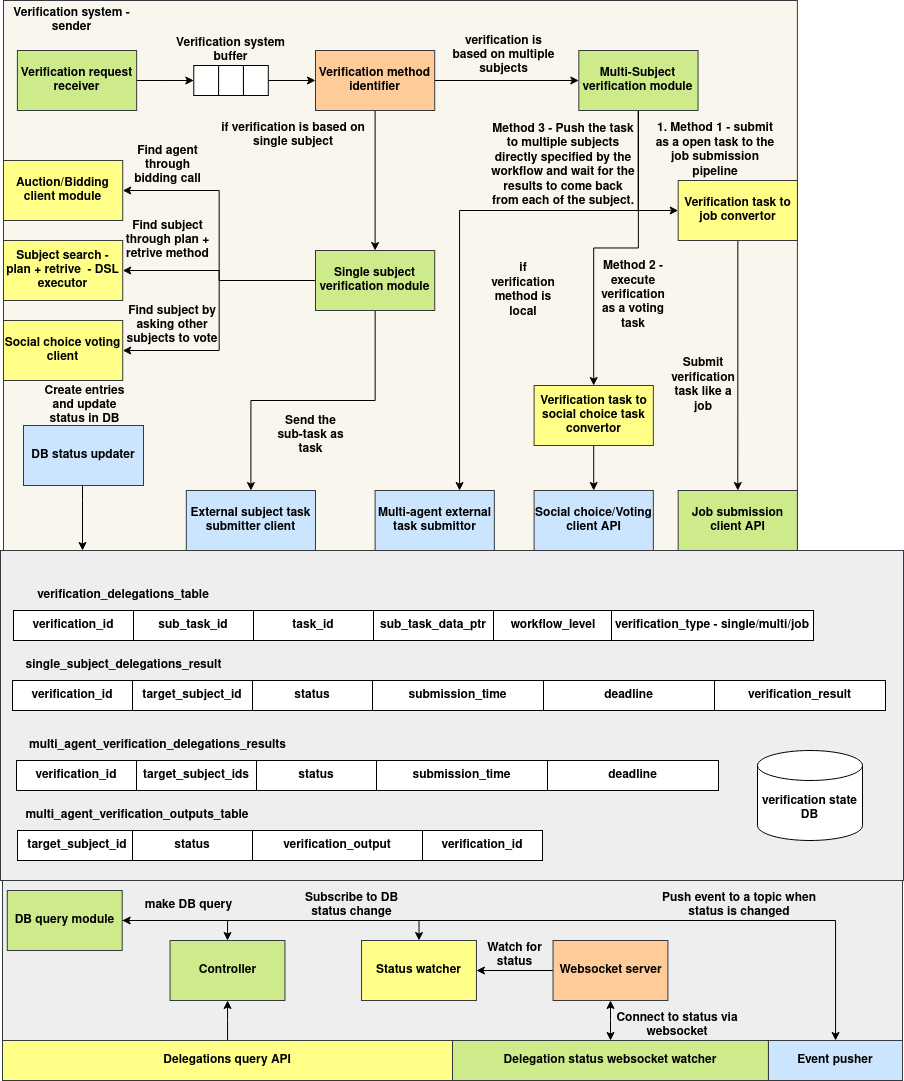

Architecture

Verification System

Download Image

The Verification System follows a modular and event-driven architecture that enables asynchronous, multi-agent task delegation and verification with real-time status updates. It is composed of three core layers: Verification Processing Pipeline, Delegation State Management, and Status Broadcast System.

1. Verification Processing Pipeline

The pipeline begins with the Verification Request Receiver, which places new requests into a Verification Buffer. Each request is evaluated by the Verification Method Identifier to determine whether the task requires a single subject or multiple agents.

For single-subject verifications, the system uses DSL-based planning or auction modules to locate a suitable agent. The selected agent is issued a task through the Single Subject Verification Module, which hands it off to the External Subject Task Submitter Client.
For multi-agent verifications, the request flows into the Multi-Subject Verification Module, which offers three execution strategies:
Job-based submission, via the Verification Task to Job Converter
Voting-based decision, using the Social Choice Task Converter and the Voting Client API
Workflow-specific delegation, where the module pushes the task to all specified agents and awaits results

All task creation and status updates are handled centrally by the DB Status Updater component.

2. Delegation State Management

All verification metadata is persisted in the Verification State Database, which includes:

verification_delegations_table: primary metadata for verification requests
single_subject_delegations_result and multi_agent_verification_delegations_results: individual and collective outcomes
multi_agent_verification_outputs_table: detailed verification outputs for each agent

These tables are indexed and accessed via the DB Query Module, allowing internal and external clients to inspect and monitor task states.

3. Status Broadcast System

To enable real-time tracking, the Status Watcher subscribes to DB-level status changes and emits events when state updates occur. These are transmitted over the WebSocket Server, allowing clients to subscribe to status channels for specific tasks or sub-tasks.

The Controller mediates database queries, while the Event Pusher publishes updates to appropriate listeners. This ensures synchronization between backend processing and front-end interfaces.

Schema

`DelegationResult`

@dataclass
class DelegationResult:
    target_subject_id: str
    status: str
    submission_time: Optional[datetime] = None
    deadline: Optional[datetime] = None
    verification_result: dict = field(default_factory=dict)
    verification_output: dict = field(default_factory=dict)

Field	Type	Description
`target_subject_id`	`str`	ID of the delegated subject
`status`	`str`	Task status (e.g. `pending`, `completed`)
`submission_time`	`datetime`	When result was submitted
`deadline`	`datetime`	Deadline for task completion
`verification_result`	`dict`	Structured output from subject's verification
`verification_output`	`dict`	Additional output data

`VerificationDelegation`

@dataclass
class VerificationDelegation:
    task_id: str
    subject_id: str
    sub_task_id: Optional[str] = None
    sub_task_data_ptr: Optional[str] = None
    workflow_level: Optional[str] = None
    verification_type: Optional[str] = None
    single_subject_results: List[DelegationResult] = field(default_factory=list)
    multi_agent_results: List[DelegationResult] = field(default_factory=list)
    created_at: datetime = field(default_factory=datetime.utcnow)
    updated_at: Optional[datetime] = None

Field	Type	Description
`task_id`	`str`	Unique task identifier
`subject_id`	`str`	Subject responsible for initiating the task
`sub_task_id`	`str`	Optional sub-task ID
`sub_task_data_ptr`	`str`	Pointer to data source
`workflow_level`	`str`	Workflow level of delegation
`verification_type`	`str`	Type of verification (manual, auto, etc.)
`single_subject_results`	`List[Result]`	Results from individual subjects
`multi_agent_results`	`List[Result]`	Results from multi-agent collaboration
`created_at`	`datetime`	Timestamp of task creation
`updated_at`	`datetime`	Timestamp of last update

APIs

`POST /verifications`

Create a new verification task.

Request:

{
  "task_id": "task123",
  "subject_id": "user_abc",
  "verification_type": "manual",
  "single_subject_results": [
    {
      "target_subject_id": "agent_1",
      "status": "pending"
    }
  ]
}

cURL:

curl -X POST http://localhost:5000/verifications \
  -H "Content-Type: application/json" \
  -d '{
    "task_id": "task123",
    "subject_id": "user_abc",
    "verification_type": "manual",
    "single_subject_results": [
      {
        "target_subject_id": "agent_1",
        "status": "pending"
      }
    ]
  }'

`GET /verifications/<verification_id>`

Retrieve a verification task by ID.

cURL:

curl http://localhost:5000/verifications/665f46fa2eced7ed85dff231

`PUT /verifications/<verification_id>`

Update an existing verification.

Request:

{
  "verification_type": "auto",
  "updated_at": "2025-06-04T11:00:00"
}

cURL:

curl -X PUT http://localhost:5000/verifications/665f46fa2eced7ed85dff231 \
  -H "Content-Type: application/json" \
  -d '{
    "verification_type": "auto",
    "updated_at": "2025-06-04T11:00:00"
  }'

`DELETE /verifications/<verification_id>`

Delete a verification task by ID.

cURL:

curl -X DELETE http://localhost:5000/verifications/665f46fa2eced7ed85dff231

`GET /verifications/task/<task_id>`

Query verifications by task ID.

cURL:

curl http://localhost:5000/verifications/task/task123

`POST /verifications/<verification_id>/submit-result`

Submit a result for a delegated subject.

Request:

{
  "target_subject_id": "agent_1",
  "status": "completed",
  "result_data": {
    "verification_result": {
      "pass": true
    },
    "verification_output": {
      "notes": "All checks passed."
    }
  }
}

cURL:

curl -X POST http://localhost:5000/verifications/665f46fa2eced7ed85dff231/submit-result \
  -H "Content-Type: application/json" \
  -d '{
    "target_subject_id": "agent_1",
    "status": "completed",
    "result_data": {
      "verification_result": {
        "pass": true
      },
      "verification_output": {
        "notes": "All checks passed."
      }
    }
  }'

WebSocket Server + Python Client Example

Server Endpoint

The WebSocket server listens on:

ws://localhost:8765/ws/<subject_id>/<task_id>[/<sub_task_id>]

Whenever a verification is created or updated, connected clients receive a JSON message with the latest verification document.

Sample Python WebSocket Client

import asyncio
import websockets

async def listen_updates():
    uri = "ws://localhost:8765/ws/user_abc/task123"
    async with websockets.connect(uri) as websocket:
        print("Listening for updates...")
        while True:
            message = await websocket.recv()
            print(f"Received update: {message}")

asyncio.run(listen_updates())

To receive updates for a specific sub-task:

uri = "ws://localhost:8765/ws/user_abc/task123/subtask1"

Verification Client

Introduction

The Verification Client module provides high-level tools to interact with the verification and voting system using REST and NATS. It enables:

Creating and submitting verification tasks
Pushing and receiving real-time responses via NATS
Managing social choice tasks and votes using REST APIs
Performing asynchronous coordination using event-based protocols

This module abstracts underlying communication and simplifies integration into distributed agent systems.

Importing Guide

To use the verification client, import it as:

from agent_sdk.verification import *

This gives access to:

VerificationClient: Wrapper around REST APIs and WebSocket listeners
TaskDBResponseWaiter: Listens to WebSocket-based result updates
AdhocVerification: Pushes verification events over NATS
AdhocVerificationReceiver: Listens for ad-hoc verification messages via NATS
AdhocVerificationResponsePusher: Sends verification responses over NATS
SocialTaskService: Manages social tasks and voting flows

Submitting Task for Verification

You can submit a new verification task using VerificationClient:

from agent_sdk.verification import VerificationClient

client = VerificationClient("http://localhost:5000")

response = client.create_verification(
    task_id="task_123",
    subject_id="agent_a",
    sub_task_id="subtask_xyz",
    verification_type="manual"
)

print("Verification ID:", response)

You can also push an ad-hoc verification message directly over NATS:

from agent_sdk.verification import AdhocVerification

verifier = AdhocVerification("nats://localhost:4222")
verifier.push(
    subject="agent_a__task_123",
    event_type="start_verification",
    sender_subject_id="agent_b",
    event_data={"input": "data"}
)
verifier.close()

Waiting for Verification Result

Via WebSocket (TaskDBResponseWaiter)

Use this to stream updates from the backend via a WebSocket server:

from agent_sdk.verification import VerificationClient

waiter = VerificationClient("http://localhost:5000").create_waiter("task_123", "subtask_xyz")

for update in waiter.get_results():
    print("Received update:", update)
    break

Via NATS (AdhocVerificationReceiver)

You can receive ad-hoc verification responses like this:

from agent_sdk.verification import AdhocVerificationReceiver

receiver = AdhocVerificationReceiver("nats://localhost:4222")
response = receiver.receive(subject_id="agent_a", verification_id="task_123")
print("Received:", response)
receiver.close()

To push a response:

from agent_sdk.verification import AdhocVerificationResponsePusher

responder = AdhocVerificationResponsePusher("nats://localhost:4222")
responder.push(
    subject_id="agent_a",
    verification_id="task_123",
    response_data={"verified": True}
)
responder.close()

To manage social tasks and voting flows, use the SocialTaskService:

from agent_sdk.verification import SocialTaskService

service = SocialTaskService("http://localhost:5001")

# Create a new social task
task = service.create_social_task(
    created_by_subject_id="agent_a",
    voting_type="majority",
    invited_subject_ids=["agent_b", "agent_c"],
    goal_data={"decision": "select_strategy"},
    status="pending",
    report={},
    voting_pqt_dsl_id="dsl_123",
    choice_evaluation_dsl="eval_dsl",
    deadline_time=1688888888
)

print("Created Social Task:", task.social_task_id)

# Wait for voting result (via NATS)
waiter = service.create_waiter_for_task(task_id=task.social_task_id)
result = waiter.get()
print("Voting Result:", result.voting_result)
