Agent communication system

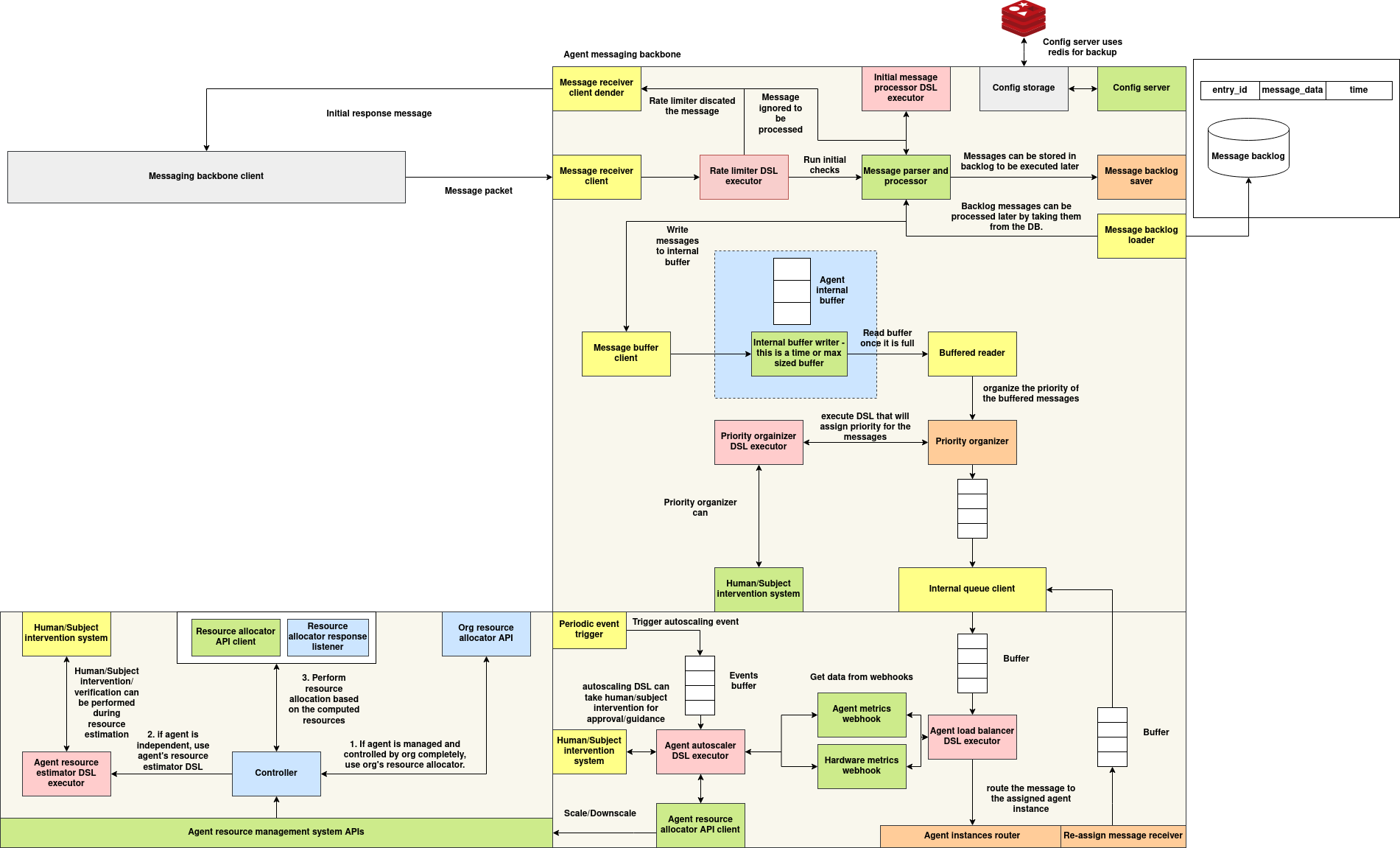

Architecture

agent-communication

Download Image

The Agent Communication System is a modular, policy-driven messaging architecture designed to manage scalable, asynchronous, and intelligent interactions between distributed agents. The architecture is organized into three primary subsystems:

  1. Agent Messaging Backbone
  2. Agent Resource Management APIs
  3. Agent Instance Routing and Load Balancing

1. Agent Messaging Backbone

At the core of the architecture is the Agent Messaging Backbone, responsible for receiving, validating, buffering, and dispatching messages.

  • MessageReceiverClient handles inbound packets from external messaging clients (e.g., NATS or WebSocket).
  • A Rate Limiter DSL Executor enforces dynamic, per-sender constraints and may discard messages if thresholds are violated.
  • The validated messages proceed to a Message Parser and Processor, which can forward them directly or store them using the Message Backlog Saver for deferred execution.
  • Messages are temporarily stored in an Internal Buffer, coordinated by the Message Buffer Client. When the buffer fills (by time or size), messages are flushed for prioritization.
  • The Priority Organizer DSL Executor assigns message importance, which informs routing via the Internal Queue Client.

2. Agent Resource Management APIs

This subsystem governs resource allocation and scaling using runtime metrics and subject-specific policies.

  • The Agent Resource Estimator DSL Executor evaluates capacity requirements.
  • If applicable, the system invokes the Org Resource Allocator API or the agent’s own Resource Allocator API.
  • The Controller coordinates this process, while the Resource Allocator Response Listener captures allocation decisions.
  • Human or subject-based approval can optionally be inserted via the Intervention System, particularly during critical evaluations.

3. Agent Instance Router and Load Balancer

Once prioritized, messages are routed to agent instances using real-time system metrics and runtime policies.

  • A Buffered Reader feeds the Priority Organizer, which determines optimal ordering.
  • The Agent Load Balancer DSL Executor selects an instance by combining internal buffer state, hardware metrics, and Prometheus-style monitoring data.
  • The Internal Queue Client dispatches the message to the selected agent for processing.

Autoscaling is triggered by periodic event buffers and handled by the Agent Autoscaler DSL Executor, which can consult the Human/Subject Intervention System before submitting scale decisions to the Agent Resource Allocator API Client.

Message Server Sub system

Introduction

The Message Server is a unified communication gateway for agent-based systems that enables real-time message reception via both NATS and WebSocket protocols. It acts as the entry point for incoming messages, enforcing DSL-driven rate limiting policies and forwarding validated payloads to the backend processing pipeline, typically handled by the MessageHandler.

This design decouples message transport, rate control, and execution semantics, enabling scalable and policy-aware message ingestion across distributed environments.

Architecture Overview

MessageReceiverClient is the core server abstraction that:

  • Listens to NATS subjects or WebSocket connections
  • Applies per-sender rate limiting using a DSL-configured RateLimiter
  • Routes the message to a pluggable async handler (e.g., MessageHandler)

Each incoming message goes through:

  1. Protocol decoding
  2. Rate limit enforcement
  3. Custom handler invocation
  4. Response dispatch (reply or socket send)

MessageReceiverClient

Constructor

MessageReceiverClient(handler_function, rate_limiter=None)
Parameter Type Description
handler_function Callable (async) Async function that processes validated messages.
rate_limiter RateLimiter (optional) Optional DSL-based rate limiter to control sender request volume.

Supported Protocols

1. NATS

  • Connects to a NATS server at a configurable URL (nats://127.0.0.1:4222 by default).
  • Subscribes to a subject equal to the value of the SUBJECT_ID environment variable.
  • Responds using msg.reply to support request-response pattern.
Method
async def start_nats_server(nats_url="nats://127.0.0.1:4222")

2. WebSocket

  • Hosts a WebSocket server (default: 127.0.0.1:8765).
  • Accepts full-duplex JSON messages from connected clients.
  • Replies to the sender over the same socket.
Method
async def start_websocket_server(host="127.0.0.1", port=8765)

Execution Entrypoints

  • run_nats_server(...) Launches the NATS server using asyncio.run(...)

  • run_websocket_server(...) Launches the WebSocket server similarly

  • start() Starts both NATS and WebSocket servers concurrently on background threads

Rate Limiting (DSL-based)

The message server integrates a DSL-driven RateLimiter to enforce per-sender constraints. This allows dynamic, context-aware rules such as:

  • Different request limits per role or group
  • Time-based throttle windows
  • Complex multi-condition limits

Rate limiting occurs before messages are forwarded to the handler.

Example logic:

if rate_limiter and not rate_limiter.is_allowed(sender_subject_id):
    return {"success": False, "message": "Rate limit exceeded"}

Each sender (identified by sender_subject_id) is tracked separately. Policy violations result in rejected responses.

Common Handler

A standard async handler template is provided:

async def common_handler_function(message, rate_limiter):
    sender_subject_id = message.get("sender_subject_id")

    if rate_limiter and not rate_limiter.is_allowed(sender_subject_id):
        return {"success": False, "message": "Rate limit exceeded"}

    # Further processing can be delegated here
    return {"success": True, "message": "Message received"}

This function can be replaced with a production-grade processor like MessageHandler.parse_and_process_message(...).

Environment Variables

Variable Description
SUBJECT_ID NATS subject name to subscribe to.

Sending Messages to the Message Server

The Message Server supports two communication protocols:

  • NATS: Suitable for lightweight, low-latency, and brokered message delivery.
  • WebSocket: Ideal for persistent, bi-directional communication between agents or browser-based clients.

This section provides guidance on how external agents or services can construct and send messages to the server in either mode.

Message Format

All messages sent to the server must be JSON-encoded with the following required structure:

{
  "event_type": "task_start",
  "sender_subject_id": "agent_42",
  "event_data": {
    "message_id": 12345,
    "timestamp": "2025-06-06T12:00:00Z",
    "payload": { "task_id": "t-001", "priority": "high" }
  }
}
Field Type Description
event_type str The semantic type of event (e.g., task_start, result).
sender_subject_id str Unique identifier of the agent sending the message.
event_data dict Payload containing message_id, timestamp, and metadata.

Python Example – Sending Messages

The following Python example demonstrates how to send a message to the Message Server via both NATS and WebSocket.

Install Dependencies

pip install nats-py websockets

1. Send via NATS

import asyncio
import json
from nats.aio.client import Client as NATS

async def send_nats_message():
    nc = NATS()

    await nc.connect("nats://127.0.0.1:4222")

    message = {
        "event_type": "task_start",
        "sender_subject_id": "agent_001",
        "event_data": {
            "message_id": 1001,
            "timestamp": "2025-06-06T12:00:00Z",
            "payload": { "task_id": "t42" }
        }
    }

    # Replace with the actual SUBJECT_ID value expected by the server
    subject = "agent_001"
    response = await nc.request(subject, json.dumps(message).encode(), timeout=2)

    print("Response:", json.loads(response.data.decode()))
    await nc.close()

asyncio.run(send_nats_message())

2. Send via WebSocket

import asyncio
import websockets
import json

async def send_ws_message():
    uri = "ws://127.0.0.1:8765"
    async with websockets.connect(uri) as websocket:
        message = {
            "event_type": "task_start",
            "sender_subject_id": "agent_002",
            "event_data": {
                "message_id": 1002,
                "timestamp": "2025-06-06T12:05:00Z",
                "payload": { "task_id": "t99" }
            }
        }
        await websocket.send(json.dumps(message))

        response = await websocket.recv()
        print("Response:", json.loads(response))

asyncio.run(send_ws_message())

Response Format

Upon success, the server responds with:

{
  "success": true,
  "message": "Message received"
}

If rate limiting is exceeded or the message is malformed:

{
  "success": false,
  "message": "Rate limit exceeded"
}

Message Handling sub-system

Introduction

The Message Handling sub-system module provides a robust and extensible framework for persistently handling messages that require deferred processing. This component is designed to support asynchronous, policy-driven systems where incoming events must either be enqueued for immediate execution or stored reliably for later evaluation and execution. The system provides storage backends with interchangeable implementations based on operational needs—namely SQLite for local persistence and Redis for distributed, in-memory performance.

This module integrates tightly with a Domain-Specific Language (DSL)-based decision engine, allowing dynamic runtime evaluation of message handling policies. It is suitable for systems requiring recoverable queuing, flexible message dispatching, and conditional execution paths.

Schema

SQLite Backlog Storage

In SQLite mode, messages are stored in a local database file under a schema defined as follows:

CREATE TABLE IF NOT EXISTS message_backlog (
    entry_id INTEGER PRIMARY KEY,
    message_data TEXT NOT NULL,
    timestamp TEXT NOT NULL
);

This schema includes:

Field Type Description
entry_id INTEGER Unique identifier for the message (same as message_id).
message_data TEXT JSON-serialized message payload.
timestamp TEXT Timestamp associated with the message, used for chronological ordering.

SQLite is suitable for environments that require lightweight, file-based persistence without the overhead of external service dependencies.

Redis Backlog Storage

In Redis mode, each message is represented as a hash map and stored under the key namespace message_backlog:<message_id>. The structure of each Redis key is as follows:

  • Key: message_backlog:<message_id>
  • Value (Hash Fields):
Field Type Description
message_data String JSON-serialized message content.
timestamp String Associated timestamp for chronological or conditional reprocessing.

Redis is recommended in distributed systems requiring low-latency access and resilience through in-memory operations.

Message Handling Logic

The MessageHandler class is the primary component responsible for processing incoming messages. It performs message validation, policy evaluation via a DSL executor, and conditional queuing or backlogging based on dynamic rules.

Initialization Parameters

Parameter Type Description
op_queue Queue A thread-safe queue for downstream operational processing.
backlog_dsl_id str Optional identifier to initialize a DSL-based backlog decision executor.
backlog_db str Storage backend selection ("sqlite" or "redis").
redis_config dict Optional Redis connection parameters (host, port, db).
sqlite_db_path str Optional SQLite database file path.

Event Validation and Filtering

Before any execution logic is applied, messages are validated for structural integrity. The following fields are required:

  • event_type (str): Identifier for the type of the event.
  • sender_subject_id (str): Originator of the message.
  • event_data (dict): The payload of the message, containing operational details.

In addition, an environment variable SUBJECT_ALLOWED_EVENT_TYPES is used to apply a filter on the types of events that are permissible:

  • Format: JSON string — e.g., '{"allowed_types": ["event_a", "event_b"]}'
  • If "*" is included in the list, all event types are accepted.

Messages not conforming to these constraints are rejected and logged accordingly.

DSL-Based Backlog Decision Flow

The system supports integration with a DSL runtime executor which is used to determine the appropriate handling strategy for each incoming message. The handler invokes the configured DSL executor (if enabled) using the parsed message as input and expects a structured output determining the desired action.

Supported Actions

The decision logic is expected to return one of the following actionable results:

Action Description
"backlog" The message is persisted in the configured backlog storage.
"pass" The message is immediately enqueued for processing.
["load_backlog", "backlog"] Previously persisted backlog messages are loaded into the queue. The current message is also persisted.
["load_backlog", "pass"] Backlog is flushed into the queue. The current message is also enqueued.

Any other unexpected return structure results in a validation error.

Execution Path

The parse_and_process_message(...) method encapsulates the full lifecycle of a message, executing the following sequence:

  1. Parse and Validate:

  2. Deserialize the message.

  3. Verify required fields and types.

  4. Filter based on allowed event_types.

  5. Evaluate Policy:

  6. Execute the DSL using the parsed message.

  7. Extract and interpret the action result.

  8. Route Accordingly:

  9. Backlog: Store message.

  10. Pass: Push message to processing queue.

  11. Load Backlog & Backlog:

    • Persist current message.
    • Load all previously stored messages to queue.
    • Purge backlog.

    • Load Backlog & Pass:

    • Load backlog to queue.

    • Purge backlog.
    • Enqueue current message.

All operations are logged for observability, and exceptions during processing are captured and surfaced.

Reliability Considerations

  • Durability: SQLite guarantees data persistence across process restarts; Redis durability depends on persistence configuration (AOF/RDB).
  • Atomicity: SQLite commits are performed per operation; Redis operations are atomic at the key level.
  • Recovery: In case of system restart or DSL-triggered recovery, messages in the backlog are reintroduced to the processing pipeline as per policy.

Here is the official, structured documentation for the Configuration Management Subsystem, tailored for use in dynamic agent communication systems:

Configuration Management Subsystem

Introduction

The Configuration Management Subsystem provides a centralized, extensible, and runtime-configurable key-value configuration interface designed to serve distributed agent communication components. It enables external components to retrieve and update configuration parameters dynamically through a RESTful API or directly via code. This system supports both in-memory and Redis-backed storage, and includes a built-in watcher mechanism for reactively responding to configuration changes without restarting the system.

This is particularly valuable in environments where agent behavior, communication policies, or network thresholds need to adapt dynamically based on system state or external coordination.

Configuration Server

Class: ConfigServer

The ConfigServer class is responsible for the core logic of configuration persistence and retrieval.

Initialization Parameters

Parameter Type Default Description
use_redis bool False Enables Redis as the backend storage if True.
redis_url str "redis://localhost:6379" Redis connection string used if Redis is enabled.
default_config_env str "SUBJECT_DEFAULT_CONFIG" Environment variable containing default key-value pairs in JSON format.

Methods

set_config(key: str, value: Any) -> bool

Sets the value for a given key. If Redis is enabled, stores in Redis. Otherwise, updates the in-memory dictionary.

get_config(key: str) -> Any

Retrieves the configuration value associated with the given key. If Redis is used and the key exists, the value is deserialized from Redis. Otherwise, fetches from in-memory storage.

load_default_configs()

Reads the default config JSON string from the environment variable SUBJECT_DEFAULT_CONFIG and initializes internal storage with these defaults.

Environment Variable: SUBJECT_DEFAULT_CONFIG

This environment variable may contain a JSON object representing default configurations to preload at server startup.

Example:

export SUBJECT_DEFAULT_CONFIG='{
  "message_timeout": 30,
  "retry_limit": 5,
  "log_level": "INFO"
}'

REST API

The configuration server exposes a REST interface using Flask.

Endpoint: GET /config

Retrieves the value associated with a given key.

  • Query Parameter: key (required)

  • Response:

  • 200 OK with { success, key, value } if found

  • 404 Not Found if the key does not exist
  • 400 Bad Request if key is missing

Example cURL:

curl "http://localhost:5000/config?key=retry_limit"

Endpoint: POST /config

Sets or updates the value for a given configuration key.

  • Request Body (JSON):
{
  "key": "log_level",
  "value": "DEBUG"
}

  • Response:

  • 200 OK with { success: true } on success

  • 400 Bad Request if key/value is missing
  • 500 Internal Server Error if persistence fails

Example cURL:

curl -X POST http://localhost:5000/config \
  -H "Content-Type: application/json" \
  -d '{"key": "log_level", "value": "DEBUG"}'

Configuration Watcher

The ConfigWatcher provides a polling mechanism for components that require reactive updates when specific configuration keys are modified.

This enables communication components to adapt their behavior in real-time (e.g., updating timeout intervals or enabling/disabling certain modes) based on configuration changes.

Key Features

  • Periodically polls keys from ConfigServer
  • Maintains last known values for registered keys
  • Invokes a callback whenever a change is detected

Polling Behavior

Internally, the watcher:

  • Loops over all registered keys
  • Calls get_config(key)
  • Compares the value against the previously cached value
  • Triggers the callback if a change is observed

Polling interval is defined at initialization (poll_interval, default: 5 seconds).

Metrics Subsystem

Introduction

The Metrics Subsystem is a centralized runtime monitoring and telemetry layer designed to support intelligent decision-making for auto-scaling, load-balancing, and message routing across distributed agent instances. It aggregates and exposes fine-grained operational data collected from the following systems:

  • Prometheus – real-time performance and utilization metrics
  • Redis – live queue depth tracking from each agent instance
  • Kubernetes – instance-level discovery and resource metadata
  • Quota Registry APIs – policy-defined subject resource entitlements

This subsystem is a critical component in adaptive agent-based environments, enabling coordinated resource allocation, congestion avoidance, and system-wide optimization.

Architecture

The subsystem is composed of the following components:

1. MetricsInstance

The orchestrator class responsible for end-to-end metrics aggregation. It invokes the underlying modules in the following sequence:

  1. Discover agent pods using the Kubernetes API
  2. Retrieve the resource quotas for the subject
  3. Fetch live Prometheus metrics per instance
  4. Measure Redis queue lengths across discovered instances

The aggregated result is returned as a structured dictionary suitable for autoscalers, message routers, or external monitoring systems.

Component Modules

K8sInstancesDiscovery

Responsible for discovering active Kubernetes pods that belong to a specific subject. It performs:

  • Label-based filtering (subject_id)

  • Extraction of:

  • instance_id from pod metadata

  • Pod IP address
  • Redis queue port from container definitions

Output Format:

{
  "instance-001": {
    "ip": "10.0.0.1",
    "port": 6379
  }
}

ResourceQuotaAPI

Queries a central quota registry via a RESTful API to obtain the resource allocation limits for a given subject.

  • Endpoint: POST /resource-quotas/query
  • Request Payload:

json { "subject_id": "agent_xyz" } * Response: Quota specifications (e.g., max replicas, CPU limits, etc.)

PrometheusMetricsAPI

Connects to a Prometheus server and executes label-based metric queries.

  • Query Format:

metrics_record{subject_id="<subject_id>", instance_id="<instance_id>"} * API Endpoint: GET /api/v1/query * Response: Prometheus result vector for each matching time series

Supports fetching metrics per instance or in batch across multiple replicas.

RedisQueueLength

Establishes Redis connections to each discovered agent instance and computes the length of the "inputs" queue.

  • Used to assess queue congestion or message backlog per instance
  • Helps determine routing pressure and load-balance preferences

Output Format:

{
  "instance-001": 4,
  "instance-002": 10
}

Metrics Pull Interface

Method: MetricsInstance.pull(subject_id: str) -> dict

Executes the complete data aggregation process for the provided subject ID.

Example Output:

{
  "quotas": [...],
  "instances": {
    "instance-001": { "ip": "10.0.0.1", "port": 6379 }
  },
  "metrics": {
    "instance-001": [...]
  },
  "queue_lengths": {
    "instance-001": 3
  }
}

Returned metrics are intended to be consumed by:

  • Autoscaling controllers
  • Load-balancing logic
  • Policy enforcement engines

Dynamic Configuration Parameters

The behavior of the Metrics Subsystem can be tuned at runtime using the Config Server. The following keys are available for configuration:

Config Key Description
METRICS_POLL_INTERVAL Polling frequency for refreshing metrics (seconds). Default: 30.
PROMETHEUS_QUERY_TEMPLATE Custom PromQL template for metrics queries.
MAX_QUEUE_LENGTH_THRESHOLD Threshold to identify overloaded agents based on Redis queue depth.
QUOTA_REFRESH_INTERVAL Time interval (in seconds) to re-fetch resource quotas from the registry.
QUEUE_LENGTH_WEIGHT Weight factor for queue size in routing/load-balancing calculations.
CPU_UTILIZATION_WEIGHT Weight factor for CPU usage in system scoring logic.
AUTOSCALER_ENABLED Enables or disables automated scaling policies at runtime.

These values can be updated dynamically via HTTP POST requests to the configuration server:

Example:

curl -X POST http://localhost:5000/config \
  -H "Content-Type: application/json" \
  -d '{"key": "MAX_QUEUE_LENGTH_THRESHOLD", "value": 15}'

Use Cases

  • Auto-scaling triggers: Scale agent replicas based on CPU usage or Redis queue size.
  • Load-aware message routing: Distribute messages to less congested instances.
  • Policy enforcement: Validate that subject behavior stays within quota-defined limits.
  • Observability & monitoring: Integrate with Prometheus/Grafana dashboards for centralized monitoring.

Agent Autoscaler and Load Balancer

Introduction

In a distributed agent-based system, it's critical to maintain balance between available resources and workload. The Autoscaler and Load Balancer subsystem ensures this balance by:

  • Monitoring system health and load
  • Automatically scaling agent instances up or down
  • Routing incoming tasks to the best-suited agent instance

This subsystem operates in the background and uses pre-defined decision logic to make smart, real-time choices — ensuring that agent performance remains efficient even under fluctuating load.

How It Works

The subsystem runs two background threads and an optional message router:

Absolutely — here's the revised version of your documentation with MetricsProducer and MetricsConsumer replaced and clearly described under a consolidated Autoscaler section. The tone remains official and explanatory, while still clearly mapping to the underlying implementation.

Agent Autoscaler and Load Balancer

Introduction

In a distributed agent-based system, it's critical to maintain balance between available resources and workload. The Autoscaler and Load Balancer subsystem ensures this balance by:

  • Monitoring system health and load
  • Automatically scaling agent instances up or down
  • Routing incoming tasks to the best-suited agent instance

This subsystem operates in the background and uses pre-defined decision logic to make smart, real-time choices — ensuring that agent performance remains efficient even under fluctuating load.

How It Works

The subsystem includes two core capabilities:

  1. Autoscaling — determines whether to increase or decrease the number of agent instances based on current system metrics.
  2. Load Balancing — selects the best agent instance to handle an incoming task.

Autoscaler

The autoscaler continuously monitors metrics and decides when scaling actions should be performed. It operates using two cooperative background threads:

Metrics Collection and Evaluation

The autoscaler gathers metrics at regular intervals and processes them using a DSL-defined policy. It does this in two stages:

  1. Collecting Metrics

  2. Periodically fetches information such as:

    • Number of active agent instances
    • Their current load (CPU usage, queue length, etc.)
    • Uses a dedicated component that integrates with Prometheus, Redis, and the Kubernetes API to collect this data

  3. Making Scaling Decisions

  4. The collected data is passed into a DSL workflow that analyzes the system’s state

  5. Based on the logic defined in the workflow, the autoscaler determines:

    • Whether to scale up (add more replicas)
    • Whether to scale down (reduce resource usage)
    • If a decision is made, it prepares a structured scaling request
    • This request is then validated and sent to the resource manager, which carries out the actual scaling action

All of this happens automatically and continuously, without manual intervention.

Load Balancer

This is an optional component used by message routers. When a new task arrives, the LoadBalancer:

  • Retrieves the latest metrics on running agent instances
  • Uses a DSL workflow to evaluate conditions like load, queue length, or instance availability
  • Selects the most suitable instance to handle the task
  • Returns the selected instance_id to the router

This ensures that messages are sent to agents that are least busy or most capable of processing the task efficiently.

Runtime Configuration

The behavior of this subsystem can be adjusted without changing the code — using runtime configuration parameters.

Here are some examples of parameters that can be set or updated dynamically (e.g., using a config server):

Key Description
ORG_AUTOSCALER_INTERVAL How often metrics should be collected (in seconds)
SCALING_THRESHOLD_CPU Max CPU usage before scaling up is considered
SCALING_THRESHOLD_QUEUE Max queue length before scaling is triggered
MAX_REPLICA_LIMIT Maximum number of agent instances allowed
MIN_REPLICA_LIMIT Minimum number of agent instances to keep running
LOAD_BALANCER_WORKFLOW_ID DSL ID for load balancing rules
WORKFLOW_ID DSL ID for scaling rules

These values can be updated at runtime, allowing system administrators to fine-tune scaling and routing behavior without restarting services.

Certainly. Below is the official documentation for the Chat Proxy Server, written from a usability-focused point of view with a clear introduction, architecture explanation, and a guide on how to send and receive messages through the proxy.

Chat Proxy Server

Introduction

The Chat Proxy Server provides a unified WebSocket interface to interact with distributed chat agents deployed as Kubernetes pods. It simplifies the communication flow between users and chat agents by:

  • Acting as a reverse proxy between clients and dynamically discovered agent instances
  • Supporting WebSocket-based, session-aware communication
  • Automatically routing messages to available chat server pods using basic load balancing
  • Managing persistent bi-directional connections for streaming conversations

This allows client applications to connect to a single endpoint while the proxy transparently forwards messages to the correct agent instance based on session context.

Message Format

All messages exchanged with the proxy must be valid JSON and include a session_id.

Example:

{
  "session_id": "abc-123-session",
  "message": "Hello, how can I use the product?"
}

Connecting as a WebSocket Client

You can connect to the proxy server using any WebSocket client (e.g., browser, Python, or frontend JS). Below is a Python example:

Python WebSocket Client Example

import asyncio
import websockets
import json

async def chat():
    uri = "ws://localhost:9000"
    async with websockets.connect(uri) as websocket:
        session_id = "user-session-001"
        message = {
            "session_id": session_id,
            "message": "Hi, I need help with my order."
        }

        await websocket.send(json.dumps(message))
        response = await websocket.recv()
        print("Response from chat agent:", response)

asyncio.run(chat())
